Trouble Shooting

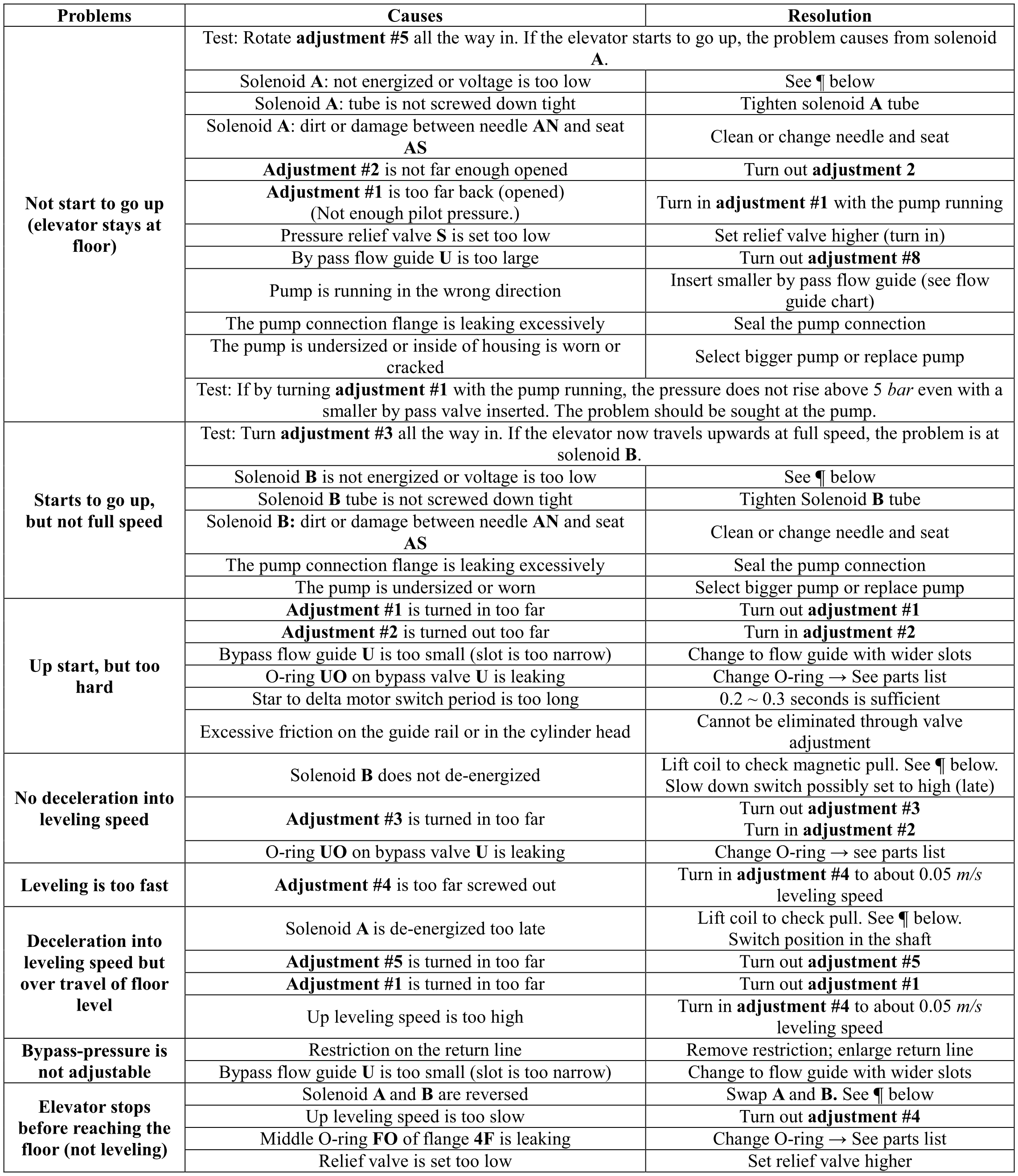

Up Travel

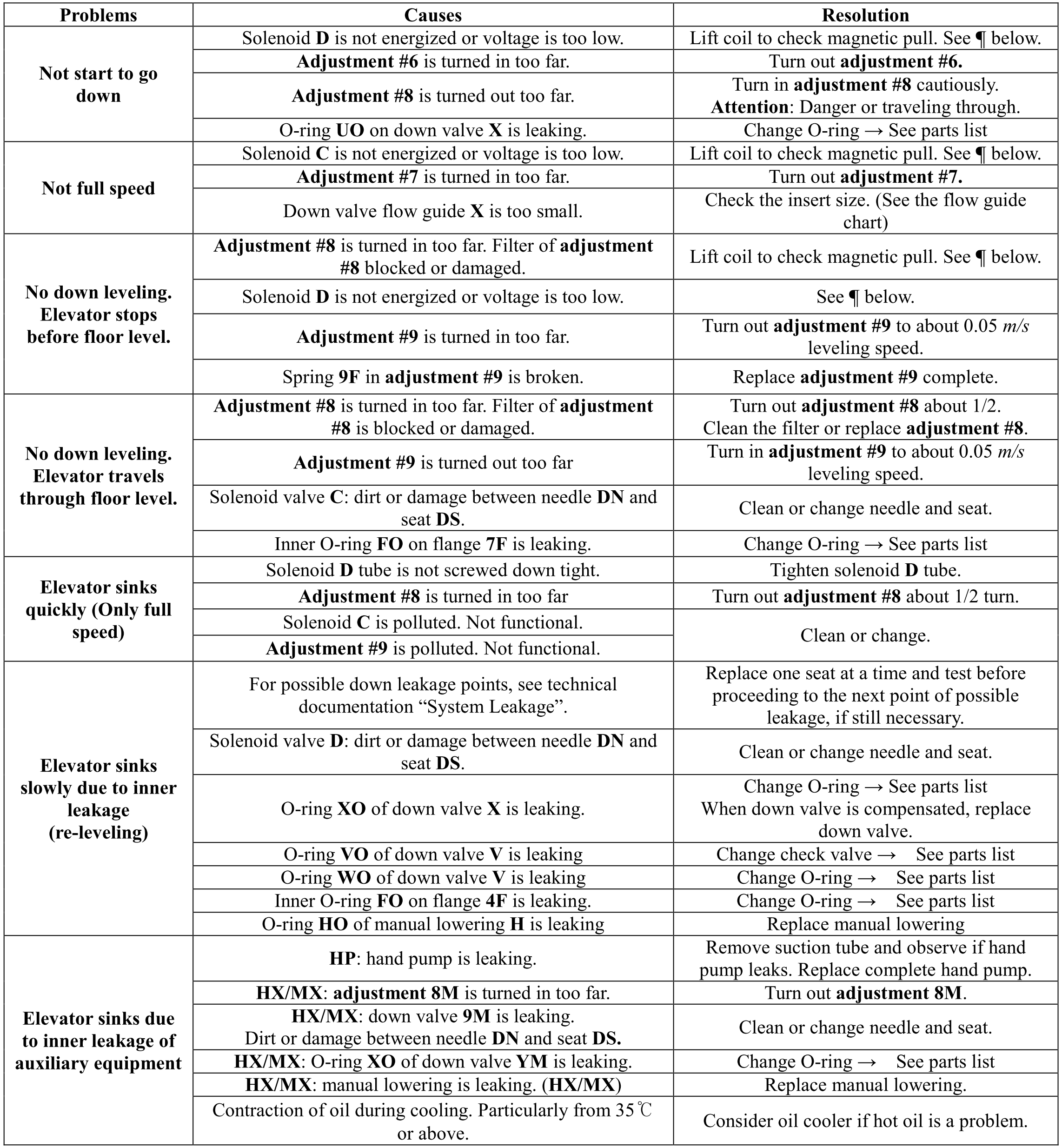

Down Travel

* For checking the operation of the solenoids, remove the top nuts. By lifting the coils few millimeters, the magnetic pull of the coil can be felt. For testing, the operation of the elevator can also be controlled by lifting and replacing the coil. *
