Hydraulic Unit & Cylinder Selection



[In order to design and manufacture hydraulic elevator, it is important to select a base specification in advance.

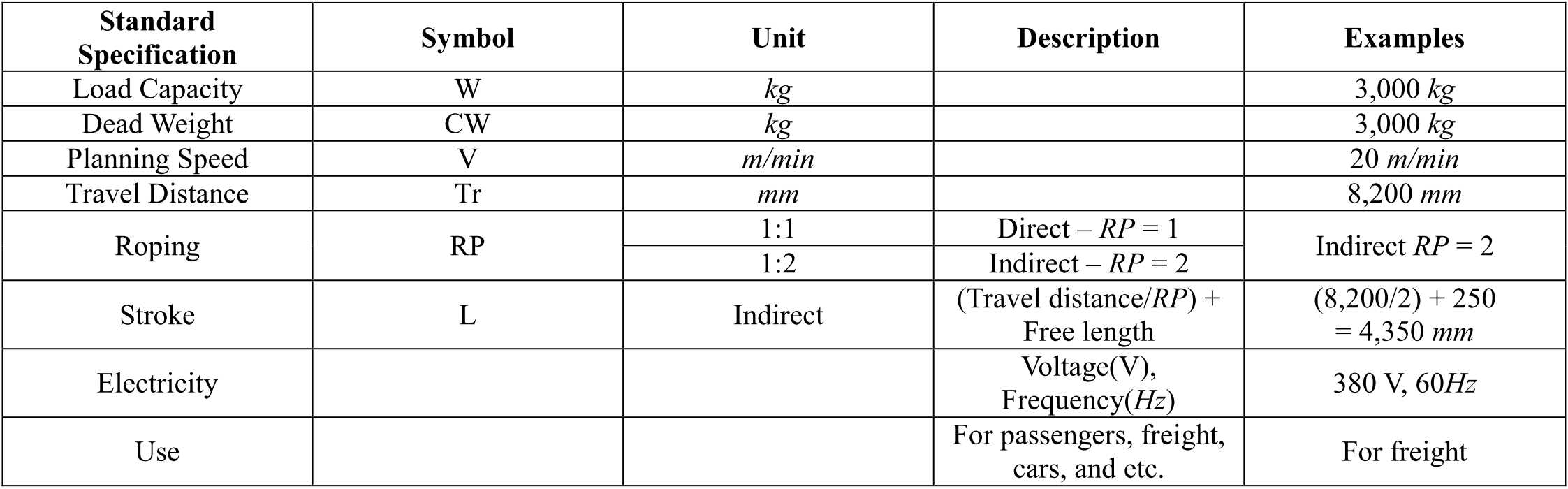

Cylinder diameter and unit pump and motor can be selected based on below table.]

> Set cylinder rod as 195 mm.

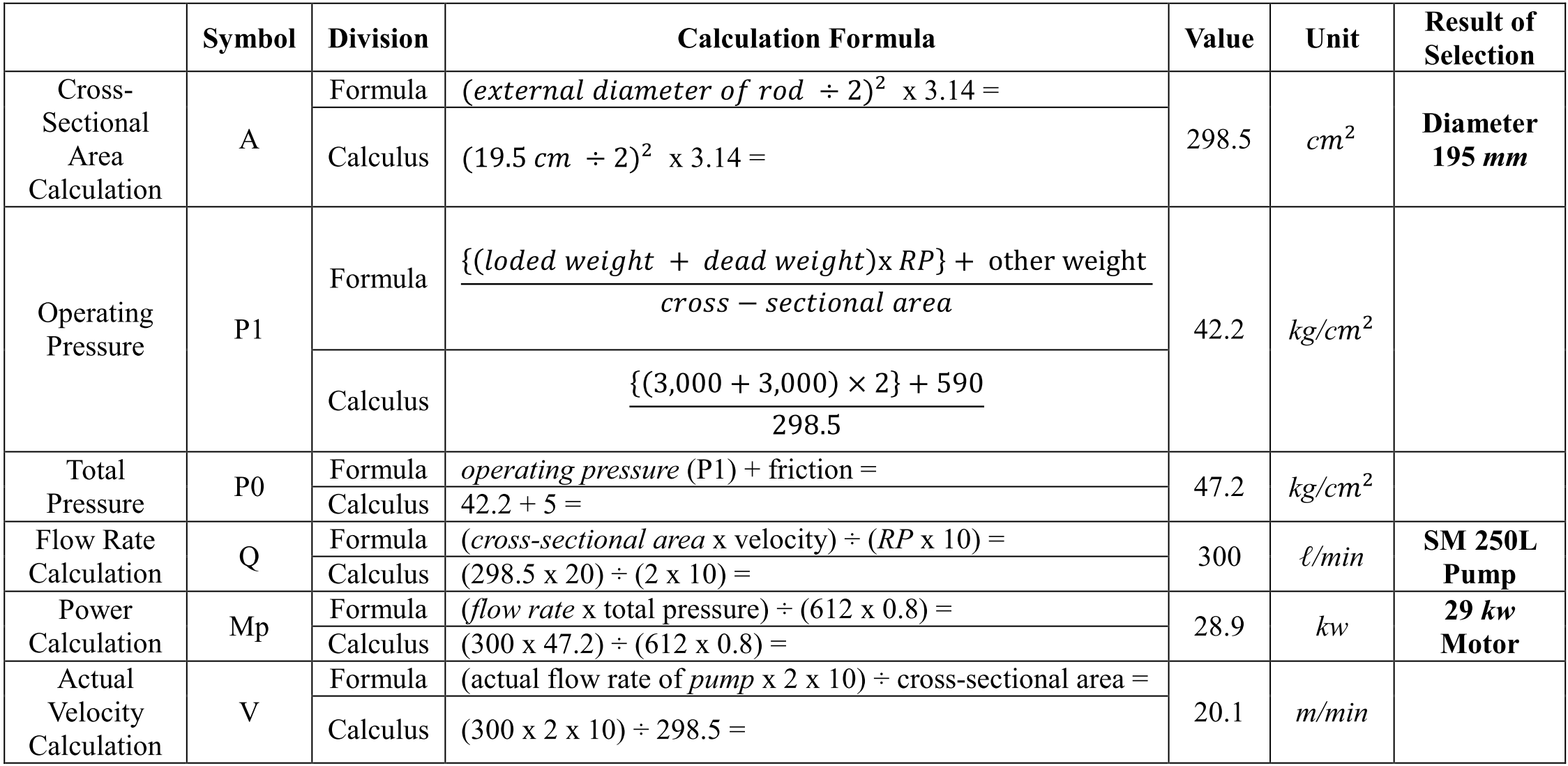

[Based on above data, it may be calculated pressure, oil flow (pump capacity), power (motor), actual speed, and tank following by below table.]
